Supporting R&D & Pilot Programs with Flexible MOQ Options.
Services we OFFER
Titanium Bipolar Plates
Bipolar plates form the structural and electrical backbone of fuel cell and electrolyzer stacks. They enable uniform reactant distribution, efficient current collection, and thermal management while providing mechanical stability to the stack assembly. Material selection, flow field design, and surface treatment directly influence efficiency, durability, and long-term system performance.

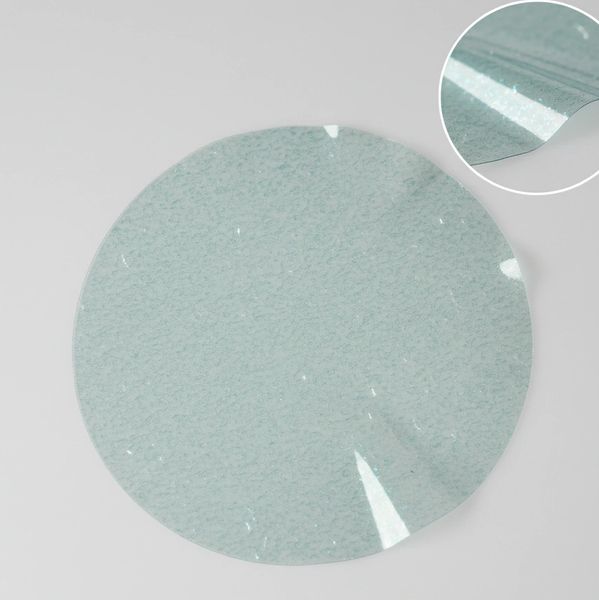

AEM Membrane
Anion Exchange Membranes (AEMs) are critical to AEM water electrolyzers, enabling efficient hydroxide ion transport while maintaining mechanical and chemical stability. Membrane performance directly influences system efficiency, cost optimization, and operational durability in green hydrogen production systems.
Gas Diffusion Layer
Gas Diffusion Layers (GDLs) facilitate uniform gas transport and effective water management within PEM fuel cells and hydrogen systems. Their porous structure supports electrical conductivity while maintaining mechanical integrity under compression. Proper GDL selection plays a critical role in stack stability and electrochemical performance.
Titanium PTL
Porous Transport Layers (PTLs) are positioned between the catalyst layer and bipolar plate in electrolyzers. They enable uniform water distribution and gas removal while supporting the catalyst structure under high current density operation. Material grade, porosity, and surface treatment significantly affect electrochemical efficiency and durability.
Technical Specifications
Titanium Bipolar Plates
Titanium Bipolar Plates
Titanium Bipolar Plates
• Titanium / Graphite / Metallic options
• Thickness: 0.1–3.0 mm
• Custom flow-field geometries
• Surface coating options
• Low contact resistance
AEM Membrane
Titanium Bipolar Plates
Titanium Bipolar Plates
• Thickness: 30–80 µm
• High OH⁻ conductivity
• Low ionic resistance
• Alkaline-stable polymer matrix
• Mechanically reinforced structure
• Designed for AEM electrolyzers
Gas Diffusion Layer
Titanium Bipolar Plates
Gas Diffusion Layer
• Porosity: 70–85% (grade dependent)
• Thickness: 150–400 µm
• Optional Microporous Layer (MPL)
• High electrical conductivity
• Compression-resistant structure
Titanium PTL
Titanium Bipolar Plates
Gas Diffusion Layer
• Titanium GR1 / GR2 material grades
• Porosity: 30–60%
• Thickness: 0.3–2.0 mm
• Sintered / etched / coated variants
• Designed for high-current density electrolysis
